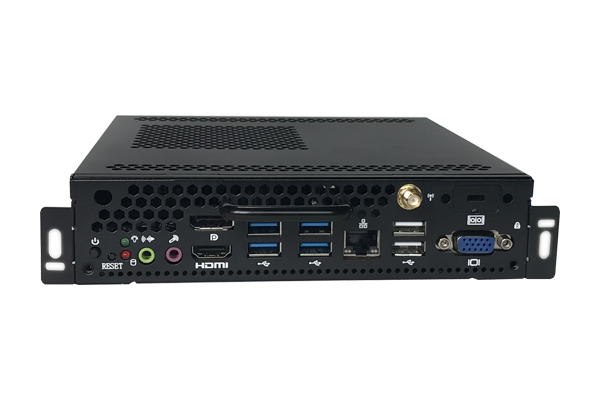

AOS-SOH7I45B
產(chǎn)品介紹：
Processor | CPU | Intel Core i3-4000M(dual core quad threads/2.4GHz/3MB L3 Cache/HD4600/22nm/37W) |
Chipset | Intel® HM86 | |
BIOS | AMI 32Mbit, Support Diskless Boot, Wake on Lan, Power-on Boot, Watchdog, etc. | |
Memory | Capacity | 4GB SO-DIMM DDR3L 1600 MHz memory , Max.8GB |
Storage | SATA Interface MINI PCIE | 2.5〞5400rpm 500G 1xMini PCIE |
Display | Graphics Output | CPU Integrated HD Graphics VGA+HDMI+DP single/dual display (synchronous/asynchronous display) 1 × VGA （Max. resolution: 1920×1080） 1 ×HDMI （Max. resolution: 1920×1080） 1 × DP （Max. resolution: 1920x1080） |
Ethernet | Lan WIFI | 1 × RTL8111E 10/100/1000M（RJ45 LAN） 1 x WIFI Module support 802.11b/g/n （Mini PCIE half card） |
I/O | USB 3.0 USB 2.0 Power button Reset COM OPS Interface LED Light DC JACK Audio | 4x USB3.0 2× USB2.0 1 × power button 1 × Reset 1 × COM (optional) 1 × OPS Interface (80 pins) 1 x Power LED & 1 x HDD LED 1 × DC JACK 1 × LINE-OUT & MIC-IN, Integrated 6 sound channels ALC662 audio card chip |
Power | Input Rated Power | DC 12~19V 60W |
Watchdog | Output Interval | Interrupts, system restart L255 time interval |
Physical Parameter | Dimension | 180mm (L) x 195mm (W) x 42mm (H) |
Condition | Temperature Humidity | Work Temp.: 0°C ~50°C, Storage Temp.: -20~70°C 5%~90% No condensation |
Operating System | Vision | Windows 10/Windows 7 / windows8 / Linux |
Ordering Information
Sales Model Specification
AOS-SOH7I41SB Intel Core i3-4000M 2.4GHz 4G Memory 128G SSD
AOS-SOH7F41SB Intel Core i5-4200M 2.5GHz 4G Memory 128G SSD
AOS-SOH7J41SB Intel Core i5-4200M 2.5GHz 4G Memory 128G SSD
Applications
Apply to education, restautants, hotels, shipping malls, corporate meeting, government affairs, etc.
