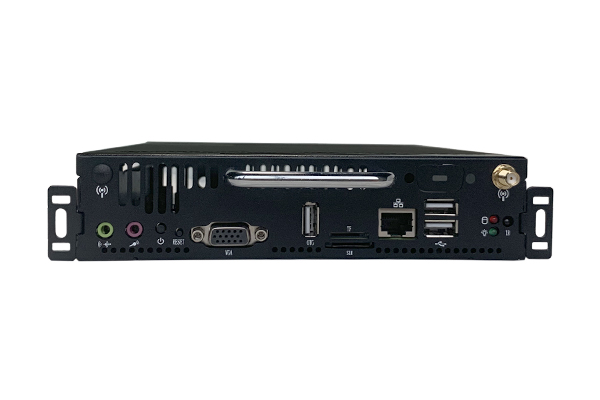

AOS-SOR38216H
產(chǎn)品介紹：
Processor | CPU | ARM series ROCKCHIP RK3288 |
Chipset | SOC | |
Memory | Capacity | 4GB SO-DIMM DDR4 2400MHz memory, Max.16GB |
Storage | EMMC TF Card | 16G, Max. 64G Max. 64G |
Display | Graphics Output | Integrated Graphics VGA+HDMI (Single / Dual Display, Synchronous / Asynchronous Display) 1 × VGA （Max. Resolution: 1920×1080） 1 × HDMI （Max. Resolution: 3840x2160） |
Ethernet | Lan WIFI | 1 × RTL8111E 10/100/1000M（RJ45 LAN） 1 x AP6330 AMPAK WIFI 2.4G/5G dual mode + BT |
I/O | USB 2.0 Power button Reset OPS Interface LED Light DC JACK Audio | 2 x USB 2.0 (Max. 3 pcs USB) 1 × Power button 1 × Upgrade 1 × OPS Interface (80 pins) 1 x LED light 1 × DC JACK 1 × LINE-OUT & MIC-IN, Integrated 6 sound channels ALC662 audio card chip |
Power | Input Rated Power | DC 12~19V 30W |
Physical Parameter | Dimension | 180mm (L) x 195mm (W) x 42mm (H) |
Condition | Temperature Humidity | Work Temp.: 0°C ~50°C, Storage Temp.: -20~70°C 5%~90% No condensation |
Operating System | Vision | Android 5.1 / Android 7.1 / Linux |
Ordering Information
Sales Model | Specification |
AOS-SOR38216H | RK3288 1.8GHz 2G Memory 16G EMMC |
AOS-SOR38464H | RK3288 1.8GHz 4G Memory 64G EMMC |
Application
Apply to education, restautants, hotels, shipping malls, corporate meeting, government affairs, etc.
